Product Name
DNF 4080-8
Quality of Material
A6N01S-T5
Surface Treatment
Hard Anodized
Weight
2.85kg/m
Section Area
1058.3mm²
2nd Section Meoment
lx=17.9*10⁴mm⁴, 1y= 67.3*10⁴mm
T-Slot
8
Specification
4000m/m
Color
silver
Application
Structure of Heavy load Machine Cover Frame .
Cad Drawing(DWG)
DWG
(464302 K)
Cad Drawing(DWF)
DWF
(27154 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

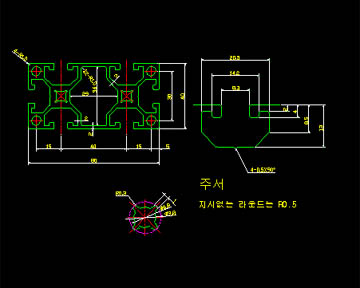

Product Section
Product Image
Product Image
