Product Name DF30120-6 Quality of Material A6NO1S-T5
Surface Treatment Hard Anodized Weight 3kg/m
Section Area 1222.2mm² 2nd Section Meoment lx=12.4*10⁴mm⁴, 1y= 173.2*10⁴mm
T-Slot 6 Specification 4000m/m
Color Silver Application Structures of Middle load. Machine Cover Frame.
Cad Drawing(DWG) DWG(306374 K) Cad Drawing(DWF) DWF(30272 K)
--> DWF file PLUGIN to view in browser WHIP3.ZIP (2,785KB) Download
Product Section

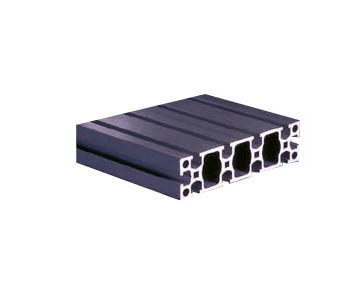

Product Image
Product Image
