Product Name
DAF 40120
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
1.86kg/m
Section Area
688.8mm²
2nd Section Meoment
lx=0.3*10⁴mm⁴, 1y= 77.2*10⁴mm
T-Slot
Specification
4000m/m
Color
Silver
Application
Joint Leveling Base for 40mm Frame.
Cad Drawing(DWG)
DWG
(117298 K)
Cad Drawing(DWF)
DWF
(40407 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

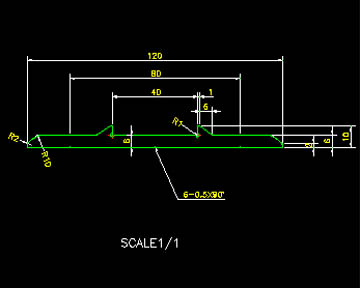

Product Section
Product Image
Product Image
