Product Name
DF-1590-6
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
2kg/m
Section Area
758.4 mm²
2nd Section Meoment
lx=1.8*10⁴mm⁴, 1y= 44.6*10⁴mm
T-Slot
6
Specification
4000m/m
Color
Silver
Application
Structures of light load Window Frame Sensor Bracket.
Cad Drawing(DWG)
DWG
(430717 K)
Cad Drawing(DWF)
DWF
(38597 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

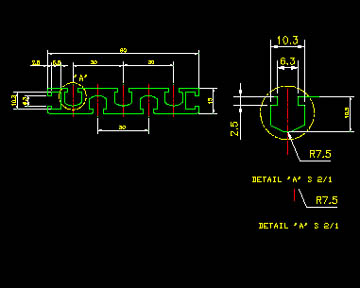

Product Section

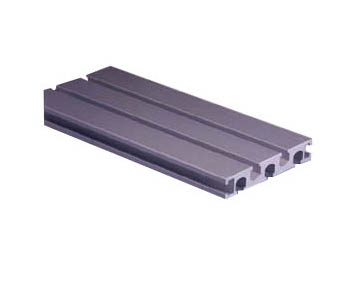

Product Image
Product Image
