Product Name
DF-1560-6
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
1.3 kg/m
Section Area
478.2 mm²
2nd Section Meoment
1x=1.19*10⁴mm⁴,1y=12.8*10⁴mm⁴
T-Slot
6
Specification
4000m/m
Color
Silver
Application
Structures of light load Window Frame Sensor Bracket.
Cad Drawing(DWG)
DWG
(449345 K)
Cad Drawing(DWF)
DWF
(36559 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

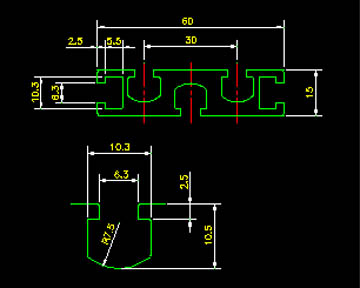

Product Section

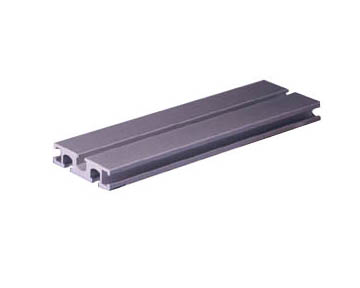

Product Image
Product Image
