Product Name
DF 40160-8
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
5.5 kg/m
Section Area
2232.07mm²
2nd Section Meoment
lx=43.6*10⁴mm⁴, 1y= 592.9*10⁴mm
T-Slot
8
Specification
4000m/m
Color
Silver
Application
Structures of Heavy load Machine Cover Frame. Conveyor Frame.
Cad Drawing(DWG)
DWG
(333116 K)
Cad Drawing(DWF)
DWF
(28331 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

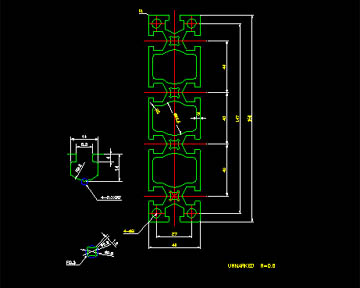

Product Section

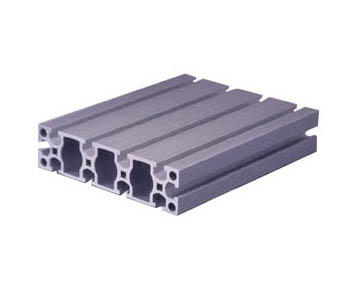

Product Image
Product Image
