Product Name DF 40120-8 Quality of Material A6NO1S-T5
Surface Treatment Hard Anodized Weight 4.3kg/m
Section Area 1680.8 mm² 2nd Section Meoment lx=31.9*10⁴mm⁴, 1y= 227.48*10⁴mm
T-Slot 8 Specification 4000m/m
Color Silver Application Structures of light load Window Frame Sensor Bracket.
Cad Drawing(DWG) DWG(114597 K) Cad Drawing(DWF) DWF(51740 K)
--> DWF file PLUGIN to view in browser WHIP3.ZIP (2,785KB) Download

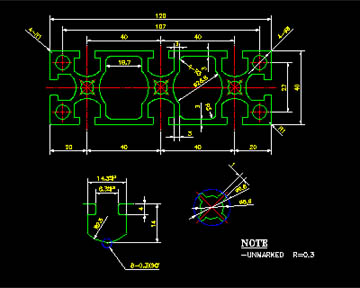

Product Section

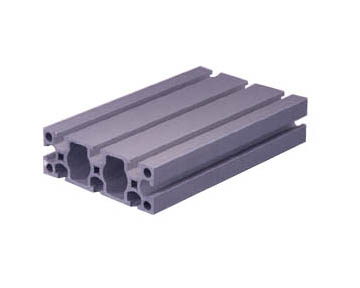

Product Image
Product Image
