Product Name
DNF 4080-8
Quality of Material
A6NO1S-T5
Surface Treatment
Hard Anodized
Weight
2.85kg/m
Section Area
1058.3 mm²
2nd Section Meoment
lx=17.9*10⁴mm⁴, 1y= 67.3*10⁴mm
T-Slot
8
Specification
4000m/m
Color
Silver
Application
Structures of Heavy load Machine Cover Frame.
Cad Drawing(DWG)
DWG
(464302 K)
Cad Drawing(DWF)
DWF
(27154 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

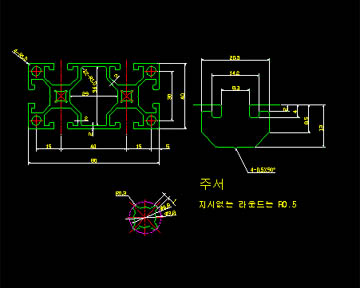

Product Section

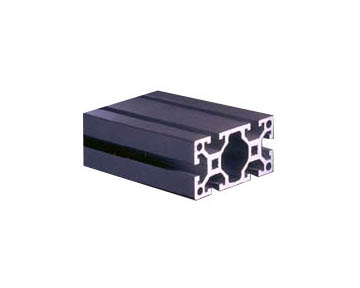

Product Image
Product Image
