Product Name
DJF 1060
Quality of Material
A6N01S-T5
Surface Treatment
Hard Anodized
Weight
1.1kg/m
Section Area
400.6mm²
2nd Section Meoment
lx=0.2*10⁴mm⁴, 1y= 13.5*10⁴mm⁴
T-Slot
Specification
4000m/m
Color
silver
Application
Joint part of Frame
Cad Drawing(DWG)
DWG
(94275 K)
Cad Drawing(DWF)
DWF
(38625 K)
--> DWF file PLUGIN to view in browser
WHIP3.ZIP (2,785KB)
Download

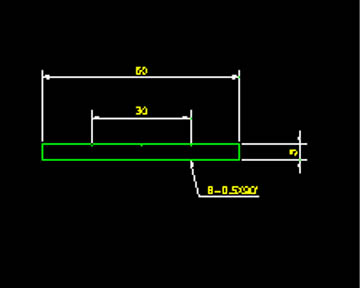

Product Section
Product Image
Product Image
