Pneumatic Tubes

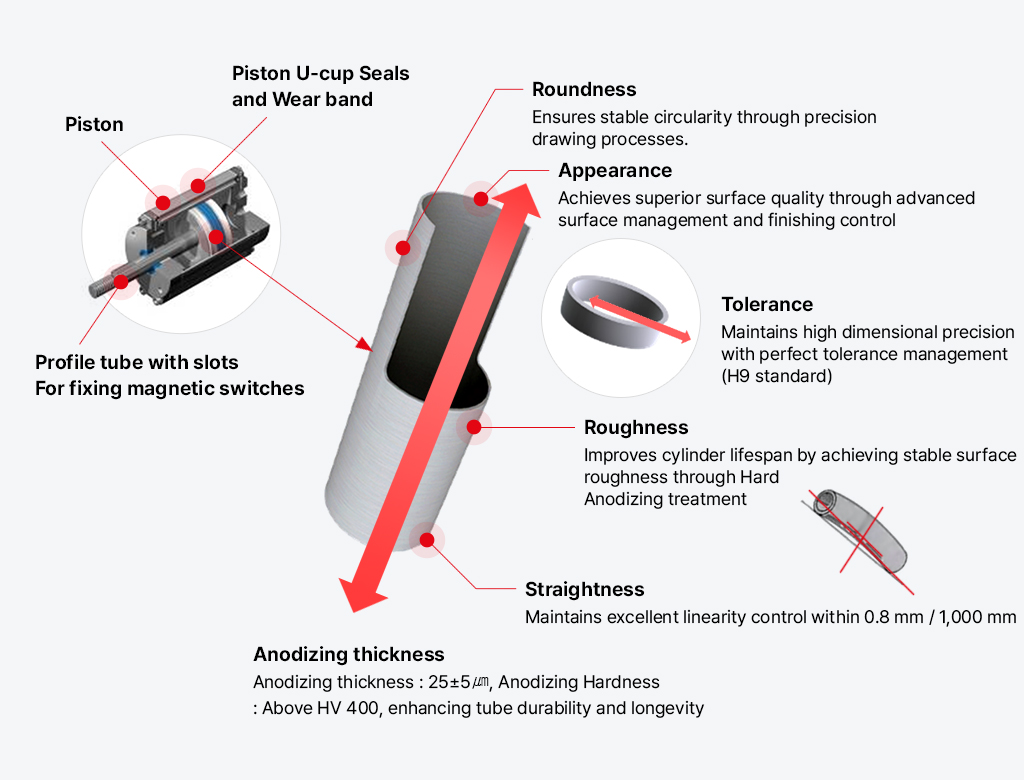

공압용 튜브 이미지

Daeyeong Metal Aluminum Tube Series

  • Round Tube 이미지
    Round Tube
  • Profile Tube 이미지
    Profile Tube

Pneumatic Tubes

1. AL Round Tube (Grade H9, H10)
Inside
Diameter		 Outside
Diameter		 Length I.D O.D Roundness Surface Roughness
Ten-Point Mean Roughness (Rzj)
Arithmetic Mean Roughness (Ra)
20 25, 26, 27 2,050 ~ 3,050 -0 ~ +0.052 ±0.10 ≤0.04 Rzj5.0 Ra0.8
25 30, 31 2,050 ~ 3,050 -0 ~ +0.052 ±0.13 ≤0.04 Rzj5.0 Ra0.8
30 35, 36, 37 2,050 ~ 3,050 -0 ~ +0.052 ±0.13 ≤0.04 Rzj5.0 Ra0.8
32 36,37,38 2,050 ~ 3,050 -0~+0.062 ±0.13 ≤0.04 Rzj5.0 Ra0.8
40 44,45,47 2,050 ~ 3,050 -0~+0.062 ±0.13 ≤0.05 Rzj5.0 Ra0.8
50 54,55,56.4,58 2,050 ~ 3,050 -0~+0.062 ±0.15 ≤0.05 Rzj5.0 Ra0.8
63 68,69,71,72 2,050 ~ 3,050 -0~+0.074 ±0.15 ≤0.05 Rzj5.0 Ra0.8
70 77 2,050 ~ 3,050 -0~+0.074 ±0.15 ≤0.05 Rzj5.0 Ra0.8
80 84.4,87,88,89 2,050 ~ 3,050 -0~+0.074 ±0.20 ≤0.06 Rzj5.0 Ra0.8
100 106,107,108,110 2,050 ~ 3,050 -0~+0.087 ±0.20 ≤0.07 Rzj5.0 Ra0.8
125 134,135 2,050 ~ 3,050 -0~+0.160 ±0.25 ≤0.10 Rzj5.0 Ra0.8
140 150 2,050 ~ 3,050 -0~+0.160 ±0.28 ≤0.11 Rzj5.0 Ra0.8
150 160 2,050 ~ 3,050 -0~+0.160 ±0.28 ≤0.11 Rzj5.0 Ra0.8
160 170,171 2,050 ~ 3,050 -0~+0.160 ±0.30 ≤0.13 Rzj5.0 Ra0.8

AL Round Tube (Grade H9, H10)

2. AL Profile Tube (Grade H11)
Inside
Diameter		 I.D Length Straightness Surface
Roughness
32 -0 ~ +0.16 2,050 0.8/1,000mm Rzj5.0
40 -0 ~ +0.16 2,050 0.8/1,000mm Rzj5.0
50 -0 ~ +0.19 2,050 0.8/1,000mm Rzj5.0
63 -0 ~ +0.19 2,050 0.8/1,000mm Rzj5.0
80 -0 ~ +0.22 2,050 0.8/1,000mm Rzj5.0
100 -0 ~ +0.22 2,050 0.8/1,000mm Rzj5.0

AL Profile Tube (Grade H11)

3. AL Compact Tube (Grade H11)
Inside
Diameter		 I.D Length Straightness Surface
Roughness
32 -0 ~ +0.16 2,050 0.8/1,000mm Rzj5.0
40 -0 ~ +0.16 2,050 0.8/1,000mm Rzj5.0
50 -0 ~ +0.19 2,050 0.8/1,000mm Rzj5.0
63 -0 ~ +0.19 2,050 0.8/1,000mm Rzj5.0
80 -0 ~ +0.22 2,050 0.8/1,000mm Rzj5.0
100 -0 ~ +0.22 2,050 0.8/1,000mm Rzj5.0

AL Compact Tube (Grade H11)
